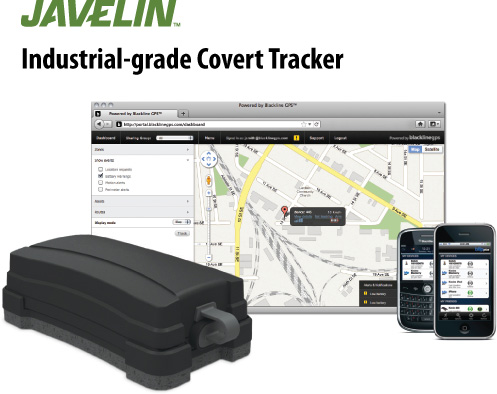

The Blackline Javelin™ is the first industrial-grade covert tracker designed specifically to meet the needs of the most critical surveillance applications.

Featuring a weather-sealed enclosure, Javelin is prepared for duty out of the box. The removable multi-mount provides a variety of mounting configurations that includes two rare earth magnets offering 120 lbs of mounting force. Other mounting options include tie-wraps, Velcro®, screw fasteners, or adhesive. When mounted, a quick press of a recessed lever releases Javelin from its multi-mount.

The Javelin removal detection and alerting system is an industry first. This user enabled feature indicates when Javelin has been compromised on a target vehicle.

A large 6000 mAh internal rechargeable Li-ion battery powers Javelin. Coupled with user-configured schedules and monitoring options, Javelin provides the tools to balance system responsiveness with battery life, ranging from two weeks to over three months between charges.

The new Blackline Business Portal is an easy-to-use online interface that allows real-time mapping of your Javelin Blackline. View real-time continuous tracking, past event data, schedule management and configure alerts and notifications from just about any mobile phone.

• Self-contained tracking device designed to industrial performance standards.

• Increases awareness of a surveillance target’s activity.

• Removal detection & alerting indicates when Javelin has been compromised.

• Ultimate Sense® 2 high sensitivity GPS antenna makes the most of weak signal coverage.

• Easy-to-use web-based Blackline Business Portal for efficient mapping and administration.

• Quickly map previous routes with data from origin to destination.

• Firmware upgradable over-the-air accommodates future enhancements.

• Web-hosted user account. No software to install.

• Quickly map a target vehicle location in the new Blackline Business Portal.

• Locate-on-motion automatically records target activity. • Large capacity internal 6000 mAh battery extends surveillance life.

• Customizable scheduling provides user-controlled power management.

• Affordable surveillance

• Low training barrier

Monthly Plan Details:
• $179.00 - 10 MINUTE TRACKING - 1 YEAR UNLIMITED - bronze
• $299.00 - 1 MINUTE TRACKING - 1 YEAR UNLIMITED - silver
• No contract

Size
without multi-mount: 75 mm W x 37 mm H x 142 mm L (3” x 1.5” x 5.6”)
with multi-mount: 75 mm W x 49 mm H x 150 mm L (3” x 2” x 5.9”)

Weight
without multi-mount and magnets: 270 g (9.5 oz)
with multi-mount and magnets: 460 g (16.2 oz)

Multi-mount
Default factory configuration: Dual rare earth magnets included
Mounting options: Tie-wrap, Velcro, screws and adhesive (not included)
Magnet pull force: 120 lb Each magnet (240 lb total)

Button & Indicator Light
Button: Power on/off, indicator light wake-up
Green indicator light: Power and wireless connection status

Wireless Communication
Radio: Quad-band GSM/GPRS (800, 900, 1800, 1900 MHz)
Antenna: Internal quad-band
Bidirectional communication
Firmware upgrade over-the-air (FOTA)

Assisted GPS
Radio: 20 Channel high sensitivity, mobile assisted
Antenna: Internal Ultimate Sense® 2 GPS antenna extends operation
in weak GPS signal conditions
Accuracy: ~5 m (16 ft) Outdoors, ~50 m (165 ft) indoors
Real-time location turnaround time: ~20 Seconds

Mobile Messaging Methods
Email, text message (SMS)

Alert Messages
Device removal detection, vehicle movement detection

Notification Messages
Low internal battery
On-network (power-on and return-to-coverage)
Off-network (power-off and out-of-coverage time-out)

Scheduler
Features include: Periodic automatic location, location-on-motion
Scheduler intervals: Service plan dependent

Power & Battery
Rechargeable Li-ion battery: 6000 mAh Li-ion

Environmental
Storage temperature: -30 to 75°C (-22 to 167°F)
Operating temperature: -20 to 55°C (-4 to 131°F)
Ingress protection: IP65, 100% condensing humidity

Approvals
FCC Part 15 Subpart B, FCC ID: QIPBGS3, Industry Canada ICES-003, PTCRB type approval, RoHS

Device Requirements
Blackline GPS activated service plan
GSM/GPRS Wireless communication coverage
GPS Signal coverage required for GPS locating

Warranty
1-Year limited factory warranty

Activated Service Plans and Wireless Coverage
Wireless coverage: Nearly 150 countries
Service plan options: Contact Blackline GPS

Blackline Business Portal Web Application
Features Include: Event history, device location mapping, device management, alert and notification settings, and more.

The Blackline GPS™ BlipPlus™ application for BlackBerry® and iPhone is completely FREE and can be used to easily track any Blackline GPS device.

Download for iPhone
Download for Blackberry

Monthly Plan Details:
• $74.00 - 10 MINUTE TRACKING - 3 MONTH - bronze
• $119.00 - 1 MINUTE TRACKING - 3 MONTH - silver
• No contract

Yearly Plan Details:
• $179.00 - 10 MINUTE TRACKING - 1 YEAR UNLIMITED - bronze
• $299.00 - 1 MINUTE TRACKING - 1 YEAR UNLIMITED - silver
• No contract

Legal Disclaimer: It is the sole responsibility of the customer to check and obey all local, Province/State, and federal laws when using any type of surveillance equipment. All equipment is sold subject to all Province/State and federal laws and regulations.
